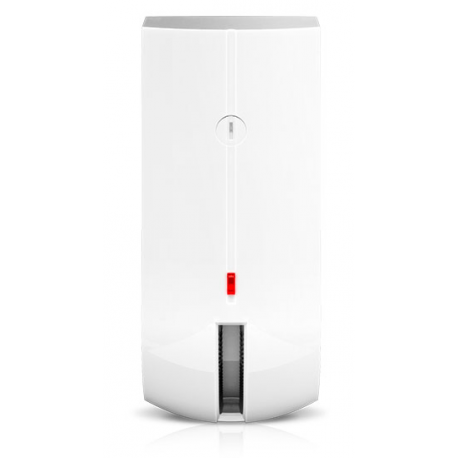

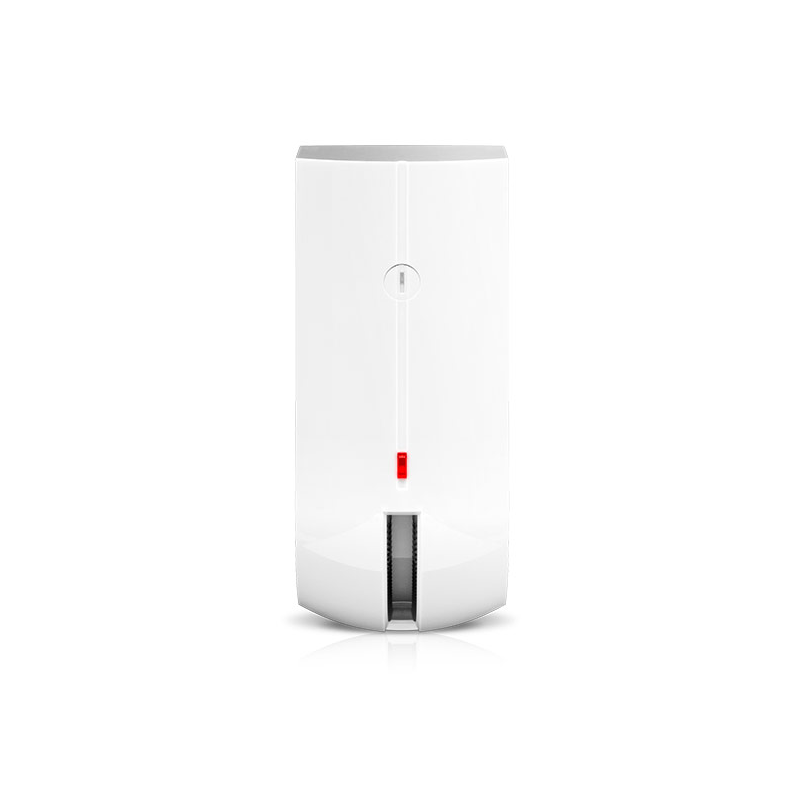

AOCD-250 DETECTEUR RIDEAUX DUAL SANS FIL ( IP-54), (SUPPORT INCLUS)

AOCD-250

DETECTEUR RIDEAUX DUAL SANS FIL ( IP-54) , (SUPPORT INCLUS)

Plus de détails

En savoir plus

DETECTEUR RIDEAUX DUAL SANS FIL ( IP-54), (SUPPORT INCLUS)

- Protection of building along its outer wall
- Protection along the property fence
- Protection of entrance gate or garage door outdoor and indoor protection of balcony / terrace / ordinary windows
- Detection of entry into protected zone
- Protection allowing for passage of pets
- Can be used both indoors and outdoors
- High resistance to adverse weather
- Conditions IP54 rating
- Compact dimensions reliable operation tamper protection user-selectable mounting

AOCD-250 is provided with two detection circuits, infrared and microwave, whose sensitivity can be independently and smoothly controlled. Thus, they can be adjusted both to the function performed by the device, as well as to the characteristics of the protected premises and its users’ needs

For standard applications, we recommend installing the detector at a height of 2.4 m, with the lens facing down. This height may be diff erent, however, if the device is to be used e.g. for protection of a window or gate.
The detector can be installed either directly on a fl at surface or using a dedicated bracket that allows installation of the device at a constant angle of 90°. The second option is especially useful when securing a portion of the building wall with many windows. When installing the detector inside the building, you can also use other brackets off ered by SATEL.
The detector can also be used to detect an entry into the pro-tected zone which is not secured in any other way (e.g. separated by a wall, closed doors, etc.). Alternatively, the device can be installed low and, additionally, turned. Such a solution will provide protection and, at the same time, create a gap to allow, for example, a small dog to freely move around.
